Hawkeye Captain 10.2 inch Android FPV Monitor for DJI goggles and Openipc

Short Description:

Hawkeye Captain X 10.2 inch 4.9G 5.8G 6G FPV Monitor with HDMI and DVR 4.9G 5.8G 6GHZ analog


  • Resoluitons: 1024*600
  • Frequency: 2.4G 5.8G
  • Sensitivity: -99DB
  • Voltage: 3S-6S
  • Brightness: 1000LUX

Product Detail

Product Tags

Hawkeye Captain 10.2 inch Android FPV Monitor for DJI goggles and  Openipc


Manual download:

https://drive.google.com/file/d/1ti612segpQoYjwwSByAXfZIquRaWC-sk/view?usp=sharing


1. Wide range power input: 3-6S.

2. 1000lux high brightness outdoor display.

3. Andoird System,4G+32GB, Max 256G Micro SD card.

4.HDMI 1080P 60FPS output

5.DJI V1/V2 USB video out support.

6. DJI goggles 2/3 OTG out support.

7.Openipc support.

8.8812AU net work card built int

9.Wifi buit in


Hawkeye Captain Android 10.2 inch FPV monitor

For DJI Goggles and Open IPC

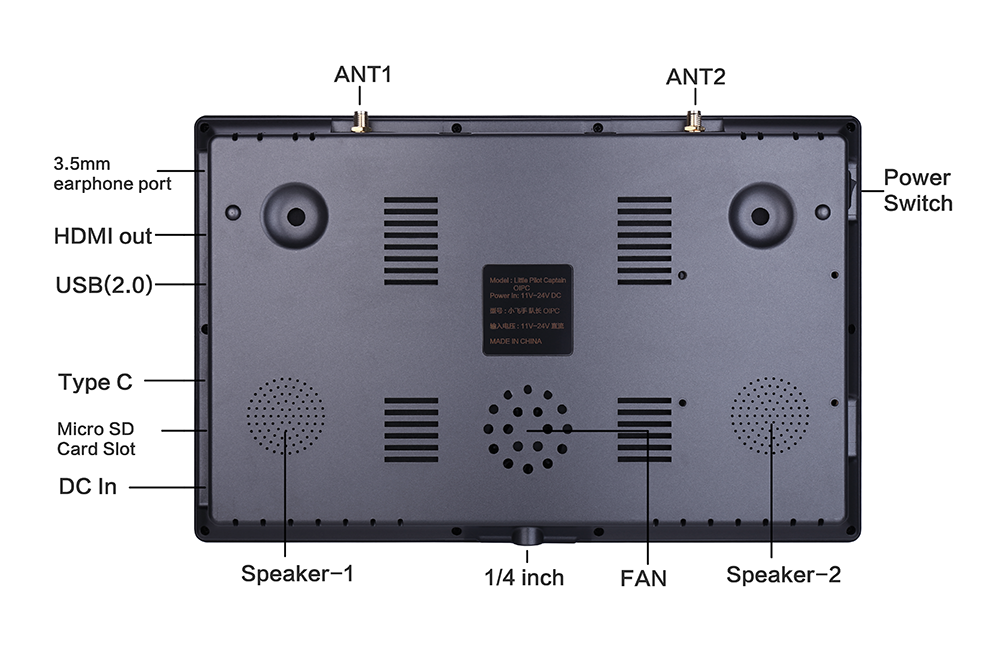

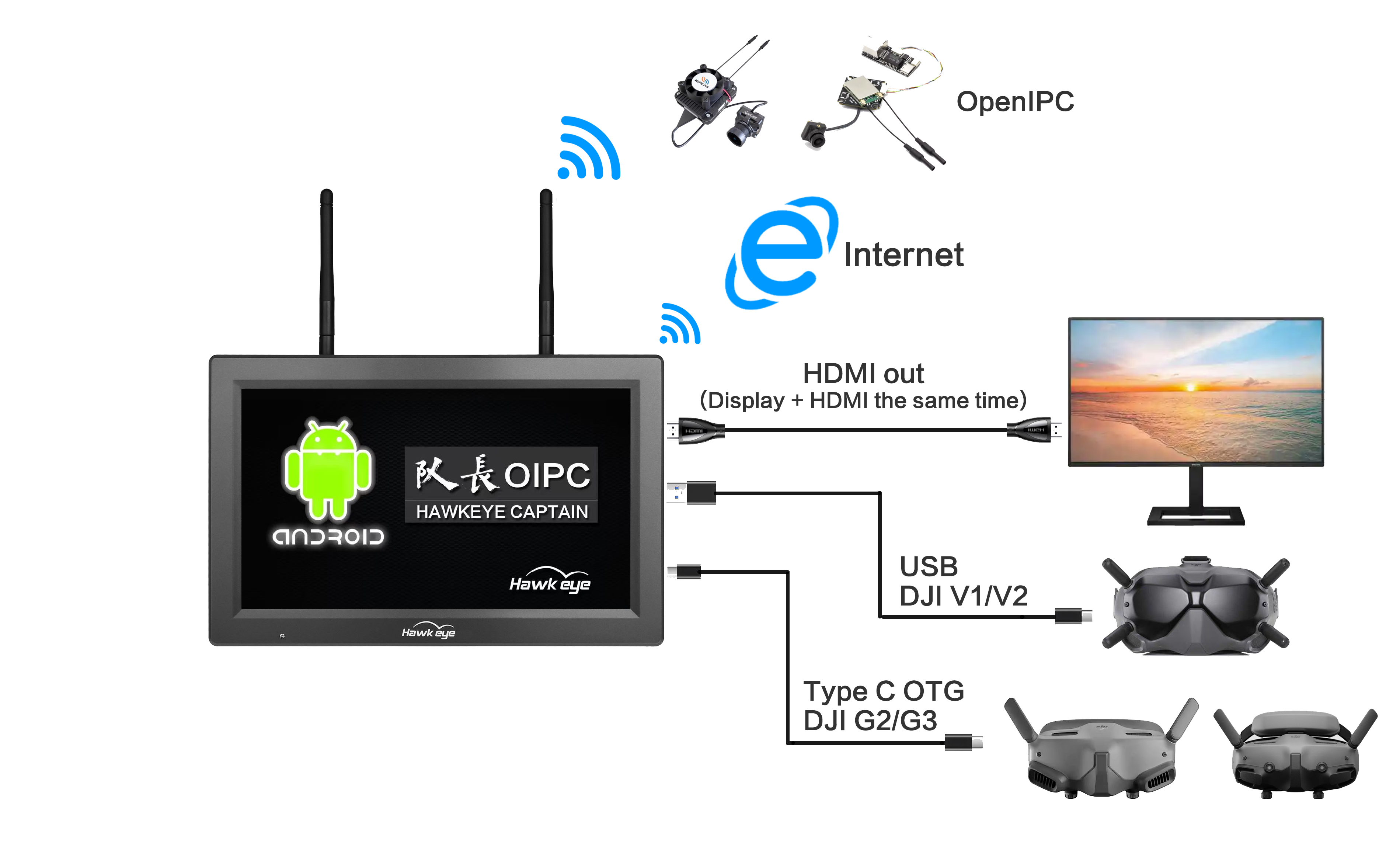

Structure:

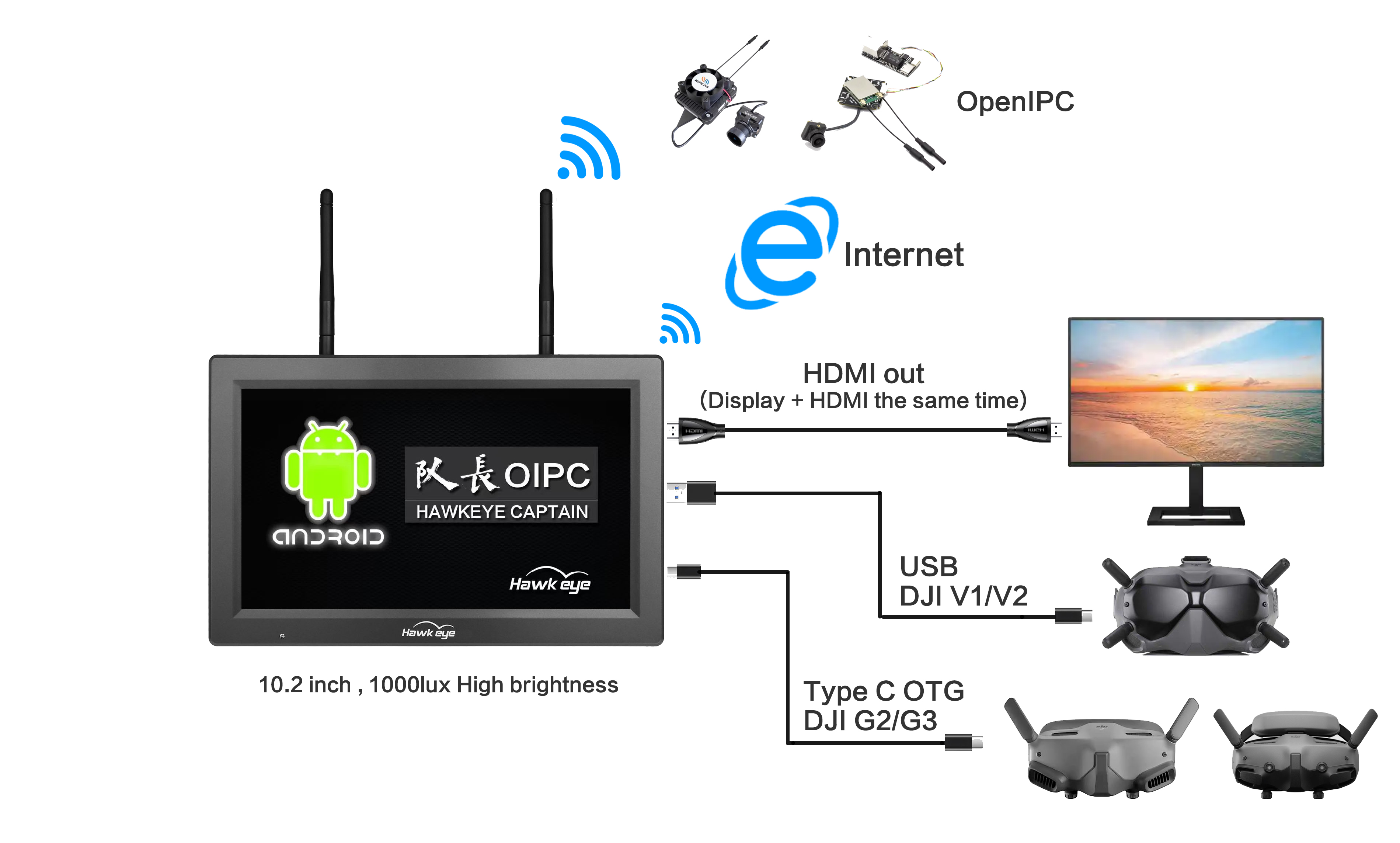

Hawkeye android.jpg

Hawkeye android.jpg








Specifications:





LCD

Resolutions

1024×600

Back   light

LED

Brightness

1000 Lux

Ratio

169

Response   time

10ms

Touch   screen

Capacitive   touch screen

System

RAM   + internal storage

4G+32GB

tf   card

Max 256G

Power

Voltage

DC3S-6S   battery

10-26V

Current

780MA @12V380MA   @26V;

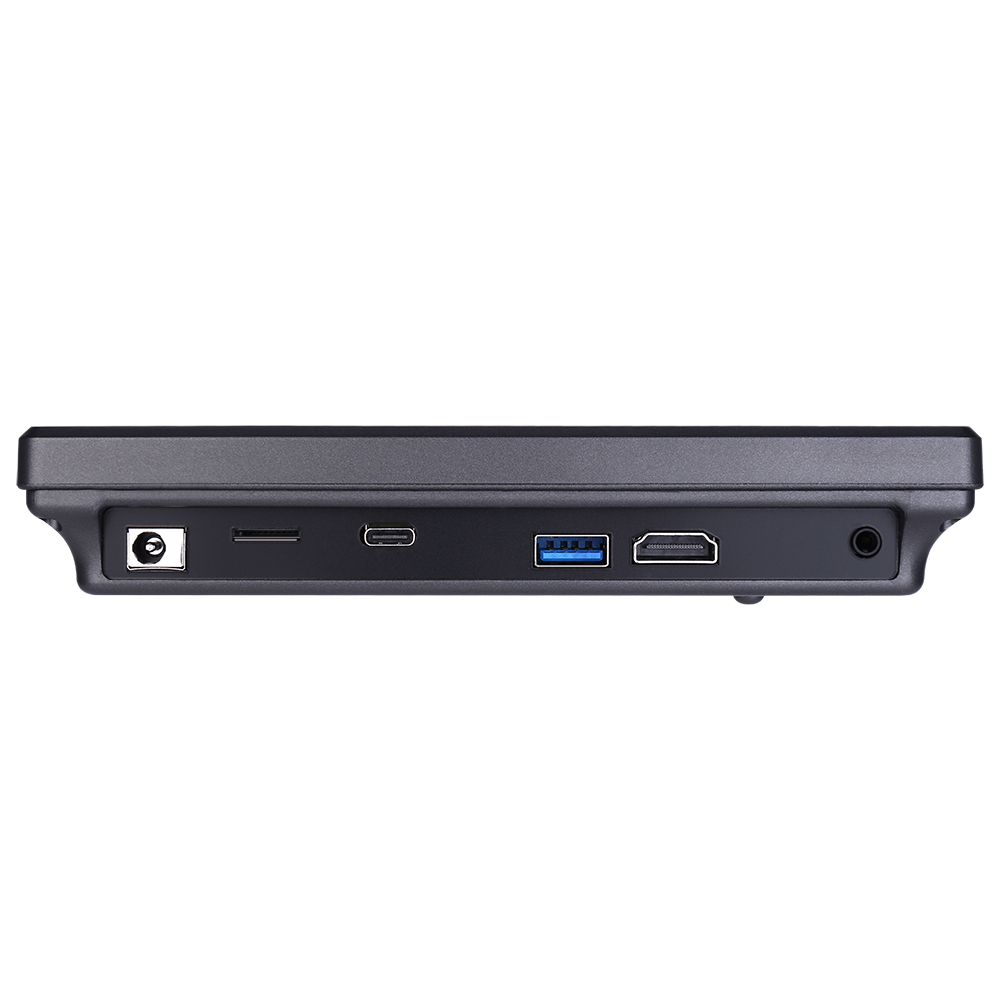

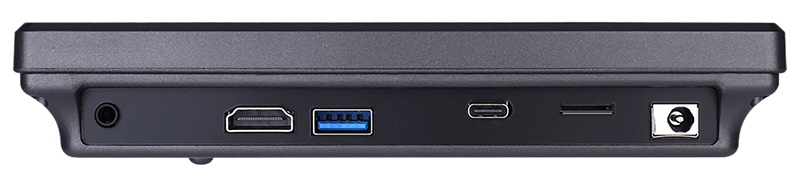

Input

USB   Port

DJI   goggles V1/V2

Mouse

TYPE   C/otg

DJI   goggles G2/G3



APP

For   DJI goggles V1/V2

fpv   out app(Preinstalled)

For   DJI goggles G2/G3

dji   fly app(Preinstalled)

For   openipc

PixelPilot(Preinstalled)

Output



HDMI

1080P 60FPS

Audio

3.5m earphone port

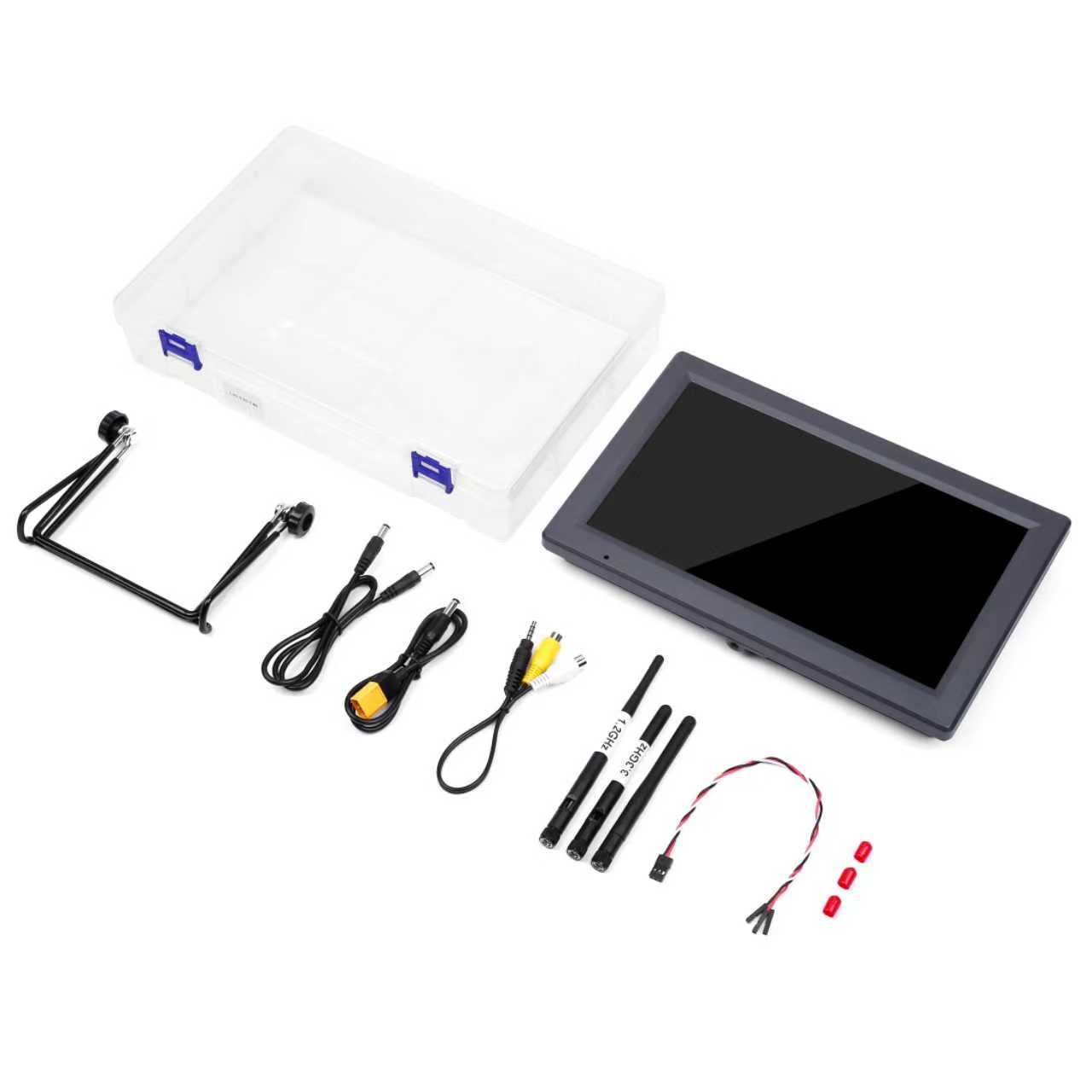

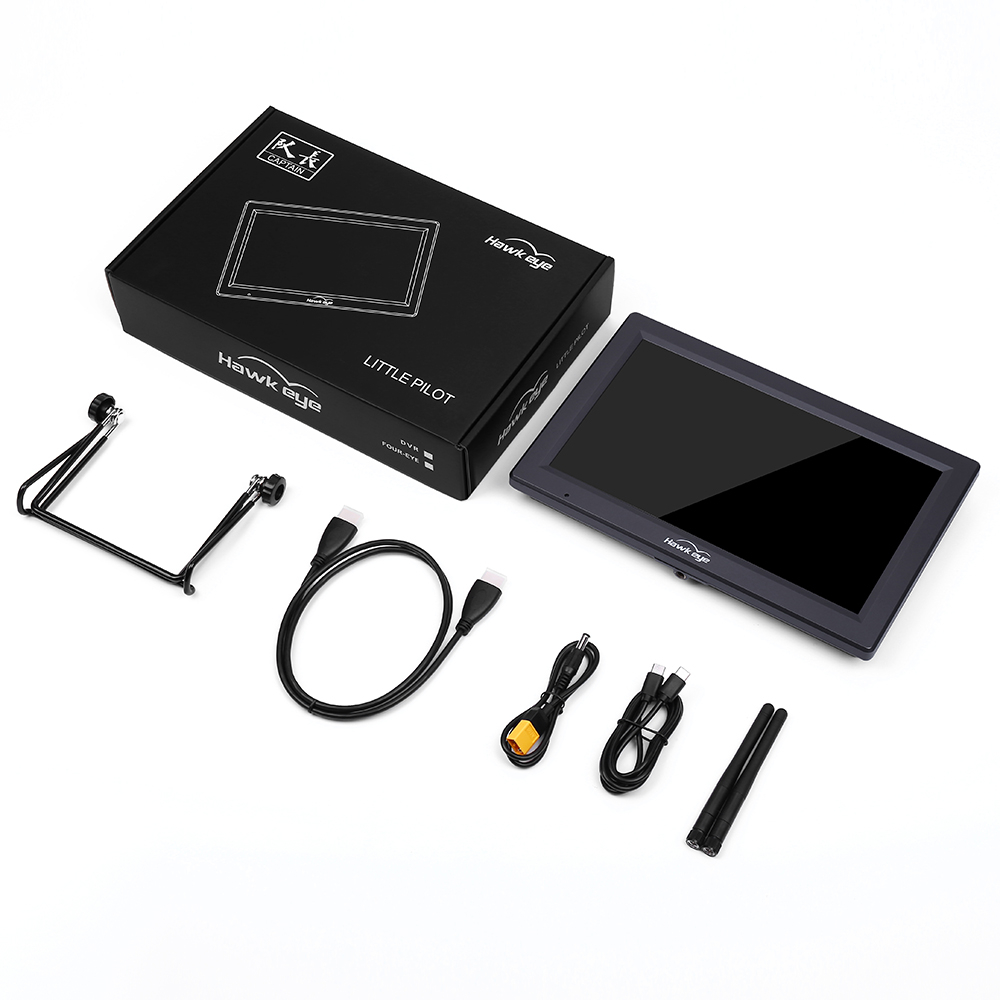

Package



Size

300mm×196mm×60mm

Weight

1kg



Wireless

Net   work card

8812AU

Antenna

5.8G SMA *2

WiFi

2.4G



Connect to DJI goggles V1/V2:



1.       Connect dji air unit to DJI goggles V1/2 ; Power ON Hawkeye captain

2.       USE USB-C cable.

3.       Connect Hawkeye’ USB port (not C port) to DJI goggles V1/V2’s  C port

4.       Run fpvout app and you can see the USB stream from goggles.




Connect to DJI goggles G2/G3:



1.       Connect dji air unit to DJI goggles G2/3 ; Power ON Hawkeye captain

2.       USE Type C-C cable.

3.       Connect Hawkeye Type C(NOT USB port) to DJI goggles G2/G3 C port

4.       Run DJIFLY app ,select the goggles model.




Connect to Openipc camera



1.       Power ON Hawkeye captain, and openipc camera

2.       Run pixelpilot app


3.       Select the camera’s channel.



HDMI output :



Hawkeye can display & output HDMI at the same time. Connect the HDMI port to other monitor.
